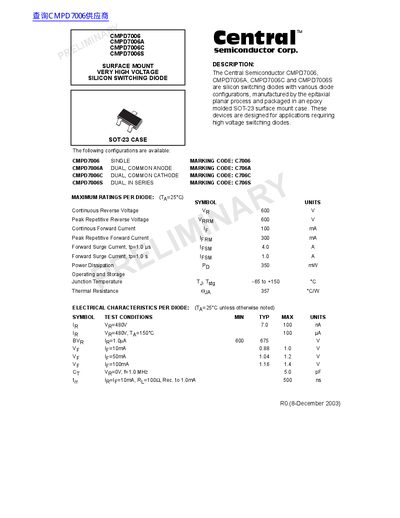

central RY PRELIMINARY CMPD7006 CMPD7006A CMPD7006C CMPD7006S SURFACE MOUNT VERY HIGH VOLTAGE SILICON SWITCHING DIODE handbook

The Central Semiconductor CMPD7006, CMPD7006A, CMPD7006C and CMPD7006S are silicon switching diodes with various diode configurations, manufactured by the epitaxial planar process and packaged in an epoxy molded SOT-23 surface mount case. These devices are designed for applications requiring high voltage switching diodes.

Brand: Central Semiconductor
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 108 KB
Published: 10 July, 2012
Updated: 01 October, 2023
MD5 checksum: AC600FE352967ADADCDEC166718B237A
PDF: central RY PRELIMINARY CMPD7006 CMPD7006A CMPD7006C CMPD7006S SURFACE MOUNT VERY HIGH VOLTAGE SILICON SWITCHING DIODE handbook PDF

About this manual

The Central Semiconductor CMPD7006, CMPD7006A, CMPD7006C, and CMPD7006S are silicon switching diodes manufactured using the epitaxial planar process. These devices are packaged in an epoxy molded SOT-23 surface mount case and are designed for applications requiring high voltage switching diodes.

What's inside

Description
Maximum Ratings
Electrical Characteristics
Marking Code
Mechanical Outline
Dimensions
Lead Code

Specifications

Peak Repetitive Reverse Voltage	600 V
Peak Repetitive Forward Current	300 mA
Forward Surge Current (tp=1.0 us)	4.0 A
Forward Surge Current (tp=1.0 s)	1.0 A
Operating and Storage Junction Temperature	-65 to +150 °C

Frequently asked questions

What are the available configurations for the CMPD7006 series?

The available configurations are CMPD7006 (Single), CMPD7006A (Dual, Common Anode), CMPD7006C (Dual, Common Cathode), and CMPD7006S (Dual, In Series).

What is the marking code for the CMPD7006?

The marking code for the CMPD7006 is C7006.

What is the package type for these diodes?

These diodes are packaged in an epoxy molded SOT-23 surface mount case.
