The CMPD914 is a high voltage high speed switching diode produced by Central Semiconductor Corporation. It is manufactured by the epitaxial planar process and packaged in an epoxy molded surface mount package. It is designed for high voltage high speed switching applications.
The Central Semiconductor CMPD914 is an ultra-high speed silicon switching diode manufactured using the epitaxial planar process. It is designed for high speed switching applications and is housed in an epoxy molded surface mount package (SOT-23 case). The marking code for the device is C5D.

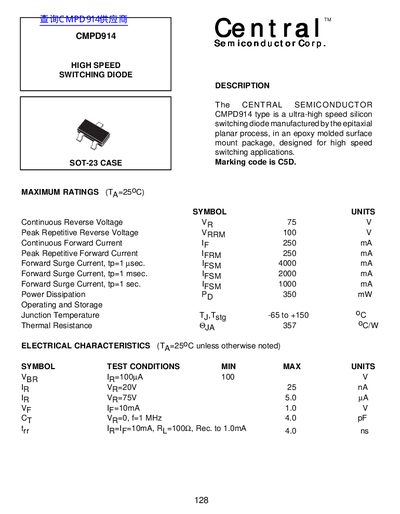

The document provides maximum ratings, electrical characteristics, and mechanical dimensions. Key specifications include a continuous reverse voltage of 75V, a peak repetitive reverse voltage of 100V, and a continuous forward current of 250mA. The junction temperature range is -65 to +150°C.
| Continuous Reverse Voltage | 75 V |
|---|---|
| Peak Repetitive Reverse Voltage | 100 V |
| Continuous Forward Current | 250 mA |
| Peak Repetitive Forward Current | 250 mA |
| Forward Surge Current (tp=1 sec) | 1000 mA |
| Power Dissipation | 350 mW |
| Operating and Storage Temperature | -65 to +150 °C |
| Package Type | SOT-23 Case |
The device has a maximum continuous reverse voltage of 75 V.
This diode is rated for a power dissipation of 350 mw.
