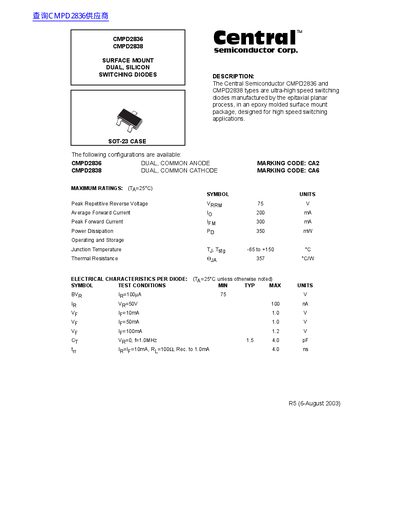

The Central Semiconductor CMPD2836 and CMPD2838 types are ultra-high speed switching diodes manufactured by the epitaxial planar process, in an epoxy molded surface mount package, designed for high speed switching applications.
The Central Semiconductor CMPD2836 and CMPD2838 types are ultra-high speed switching diodes manufactured by the epitaxial planar process in an epoxy molded surface mount package. They are designed for high speed switching applications and are available in SOT-23 cases.
| Peak Repetitive Reverse Voltage | 75 V |
|---|---|
| Average Forward Current | 200 mA |
| Peak Forward Current | 300 mA |
| Power Dissipation | 350 mW |
| Operating and Storage Junction Temperature | -65 to +150 °C |
| Thermal Resistance | 357 °C/W |
| Package Type | SOT-23 |
CMPD2836 uses marking code CA2 and CMPD2838 uses marking code CA6.
The CMPD2836 is a dual, common anode configuration.
The CMPD2838 is a dual, common cathode configuration.
