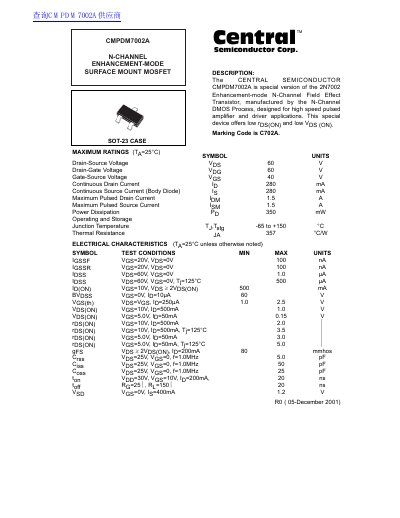

The CENTRAL SEMICONDUCTOR CMPDM7002A is a special version of the 2N7002 Enhancement-mode N-Channel Field Effect Transistor, manufactured by the N-Channel DMOS Process, designed for high speed pulsed amplifier and driver applications. This special device offers low rDS(ON) and low VDS (ON).
The Central Semiconductor CMPDM7002A is a special version of the 2N7002 Enhancement-mode N-Channel Field Effect Transistor, manufactured using the N-Channel DMOS Process. It is designed for high speed pulsed amplifier and driver applications, offering low on-resistance and low on-voltage drop. The device is housed in an SOT-23 case and features a marking code of C702A.
| Drain-Source Voltage | 60 V |
|---|---|
| Continuous Drain Current | 280 mA |
| Power Dissipation | 350 mW |
| Junction Temperature | -65 to +150 °C |
| Package Type | SOT-23 |
The maximum continuous drain current is 280 mA.
The maximum power dissipation is 350 mW.
The maximum drain-source voltage is 60 V.
