This document describes the features and characteristics of the 1PS76SB40 Schottky barrier diode, including low forward voltage, guard ring protection, very small plastic SMD package, and low diode capacitance. The product is suitable for ultra high-speed switching, voltage clamping, protection circuits, and blocking diodes.

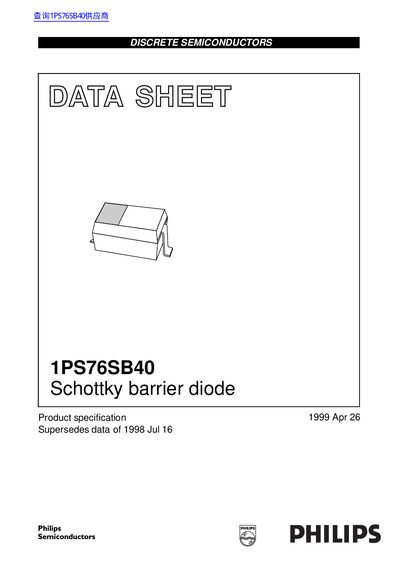

The document is a data sheet for the Philips 1PS76SB40 Schottky barrier diode. It describes the device as a planar Schottky barrier diode encapsulated in a very small plastic SOD323 surface-mount package with a guard ring.
Key features include low forward voltage, ultra-high speed switching capability, and suitability for applications such as voltage clamping, protection circuits, and blocking diodes. The datasheet details limiting values, electrical characteristics at 25°C, thermal resistance, and graphical data regarding current-voltage relationships.
| Continuous reverse voltage | - 40 V |
|---|---|
| Continuous forward current | - 120 mA |
| Repetitive peak forward current | - 120 mA |
| Non-repetitive peak forward current | - 200 mA |
| Storage temperature | -65 +150 [°C] |
| Junction temperature | - 150 °C |
| Thermal resistance (junction to ambient) | 450 K/W |
The marking code for the device is S4.
No, these products are not designed for use in life support appliances or systems where malfunction can result in personal injury.
