1PS88SB82 is a Schottky barrier triple diode from Philips, which features low forward voltage and low diode capacitance. It is suitable for UHF mixers, sampling circuits, modulators, and phase detectors.

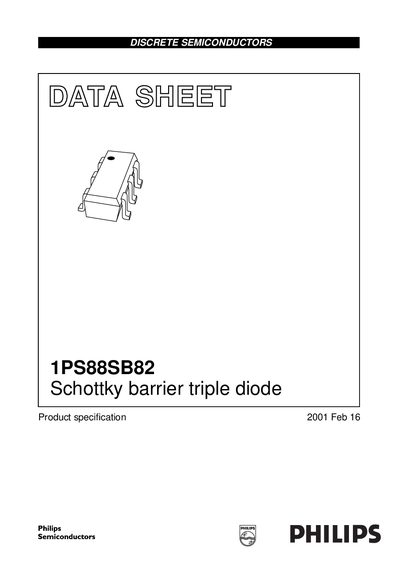

The document is a product specification for the 1PS88SB82, a Schottky barrier triple diode manufactured by Philips Semiconductors. It features three independent diodes in a small SOT363 (SC-88) SMD plastic package, designed for applications such as UHF mixers, sampling circuits, and phase detectors. The device is noted as an ESD-sensitive component.
The datasheet details the limiting values, thermal characteristics, and electrical parameters such as forward voltage, reverse current, and capacitance. It also includes graphical data for forward current, reverse current, and capacitance versus voltage, along with a package outline and dimensions for the SOT363 plastic surface-mounted package.
| Reverse voltage (per diode) | 15 V |
|---|---|
| Forward current (per diode) | 30 mA |
| Storage temperature | -65 to +150 °C |
| Junction temperature | 125 °C |
| Thermal resistance (junction to ambient) | 416 K/W |
| Forward voltage (typical at 1mA) | 340 mV |
| Forward voltage (typical at 30mA) | 700 mV |
| Reverse current (typical at 1V) | 0.2 uA |
Yes, it is an ESD sensitive device and handling precautions should be observed.
The maximum junction temperature is 125 °C.
