1PS76SB70 is a Schottky barrier diode produced by Philips Semiconductors. This diode has low forward voltage, guard ring protection, very small plastic SMD package and low diode capacitance. It is mainly used for ultra-high-speed switching, voltage clamping, protection circuits and blocking diodes.

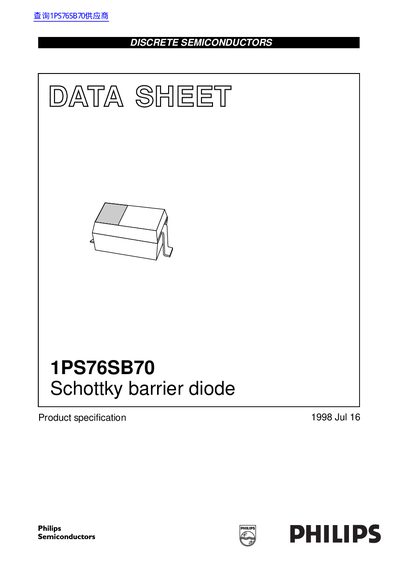

The document is a product specification sheet for the Philips 1PS76SB70, an ultra high-speed switching Schottky barrier diode. It features a low forward voltage and very small plastic SOD323 package suitable for protection circuits and blocking applications.
Key technical details include limiting values such as a continuous reverse voltage of 70 V and a storage temperature range from -65 to +150 °C. The datasheet also lists electrical characteristics like diode capacitance (2 pF) and thermal resistance, along with graphical data for forward current and reverse current.
| Continuous reverse voltage (Vr) | 70 V |
|---|---|
| Continuous forward current (If) | 70 mA |
| Non-repetitive peak forward current | 100 mA |
| Storage temperature (Tstg) | -65 to +150 °C |
| Junction temperature (Tj) | 150 °C |
| Diode capacitance (Cy) | 2 pF |
The maximum continuous reverse voltage is 70 V.
The maximum continuous forward current is 70 mA.
The maximum diode capacitance is 2 pF.
