The 1PS79SB70 Schottky barrier diode is a Schottky barrier diode produced by Philips Semiconductors. It features low forward voltage, high breakdown voltage, guard ring protected, ultra small plastic SMD package, low capacitance. It can be used in ultra high-speed switching, voltage clamping, protection circuits, blocking diodes and other occasions.

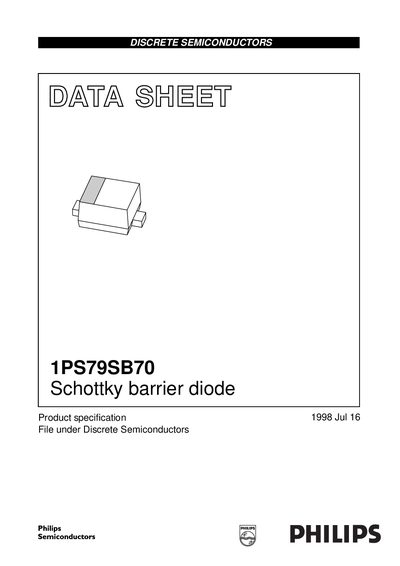

This document is a product specification datasheet for the Philips 1PS79SB70, a planar Schottky barrier diode. The device is encapsulated in an ultra-small plastic SMD SC-79 (SOD523) package and features a marking code of 'G'.
The datasheet provides comprehensive technical information including limiting values such as a maximum continuous reverse voltage of 70 V and forward current of 70 mA. It also lists electrical characteristics like forward voltage at various currents, reverse current, and diode capacitance, along with thermal resistance data.
| Storage temperature (Tstg) | -65 +150 °C |
|---|---|
| Forward voltage at Ip = 10 mA | 750 mV |
The device can withstand a continuous reverse voltage of up to 70 V.
A continuous forward current of 70 mA is rated for this diode.
The device may be stored between -65 °C and +150 °C.
