BAS40 series are general-purpose Schottky diodes produced by Philips Semiconductors. The series has single, dual and quad packages and is suitable for a variety of applications.

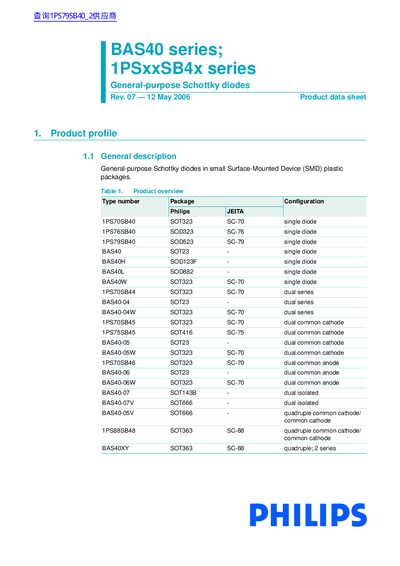

This document is a product data sheet for the Philips BAS40 series and 1PSxxSB4x series of general-purpose Schottky diodes. These devices are available in various small Surface-Mounted Device (SMD) plastic packages, including SOT23, SOD323, and SC-70 configurations.
The datasheet provides detailed technical information including a product overview with type numbers and package descriptions, quick reference data for forward current and voltage, pinning information with simplified outlines, marking codes indicating manufacturing locations, thermal characteristics such as junction-to-ambient resistance, and electrical characteristics like reverse current and capacitance.
| Forward current (per diode) | 120 mA |
|---|---|
| Reverse voltage | 40 V |
| Diode capacitance (Typ) | 5 pF |
The maximum forward current is rated at 120 mA.
The maximum reverse voltage is 40 V.
The BAS40L uses a leadless ultra small plastic package with dimensions of 1.0 x 0.6 x 0.5mm.
