This document describes the features and characteristics of the 1PS89SS04, 1PS89SS05, and 1PS89SS06 high-speed double diodes, including power dissipation, package size, switching speed, reverse voltage, etc.

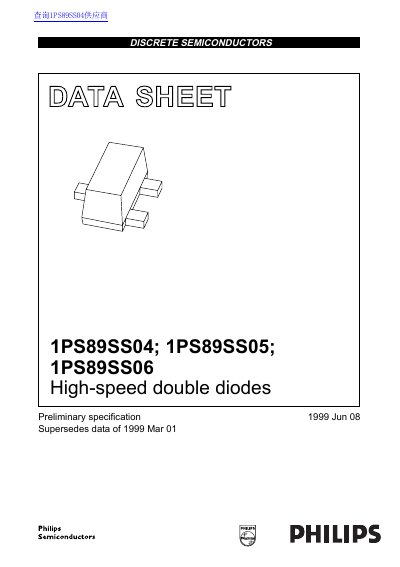

This document is a preliminary data sheet from Philips Semiconductors describing three models of high-speed double diodes: 1PS89SS04, 1PS89SS05, and 1PS89SS06. These devices utilize planar technology to provide two switching diodes in an ultra-small plastic SMD package (SC-89 / SOT23). The datasheet highlights a maximum reverse recovery time of 4 ns and is intended for high-speed switching applications in surface-mounted circuits.
| Reverse recovery time (max) | 4 ns |
|---|---|
| Repetitive peak forward current (single diode) | 200 mA |
The maximum repetitive peak forward current is 500 mA.
The maximum total power dissipation is 250 mW when the ambient temperature is below 25 °C.
