This document describes the features and characteristics of the PZM-N series voltage regulator diodes, including maximum power dissipation, small plastic package suitable for surface mounted design, wide working voltage range, etc.

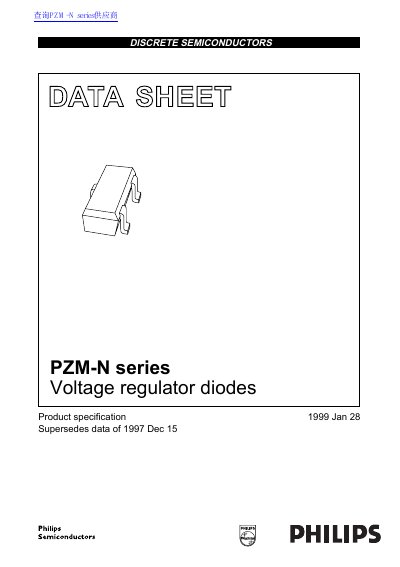

The document describes the Philips PZM-N series of discrete semiconductor voltage regulator diodes. These components are designed for general regulation functions and feature a wide working voltage range from 2.4V to 75V. They are housed in a small plastic SOT346 (SC59) package suitable for surface-mounted designs.
| Operating junction temperature | -65 to +150 °C |
|---|---|
| Forward voltage (100 mA) | 1.4 V |
| Package type | SOT346 (SC59) |
The series covers a wide working voltage range from 2.4V to 75V.
The maximum total power dissipation is 300 mW when the ambient temperature is 25 °C.
The operating junction temperature ranges from -65 °C to +150 °C, while the storage temperature is between -65 °C and +150 °C.
