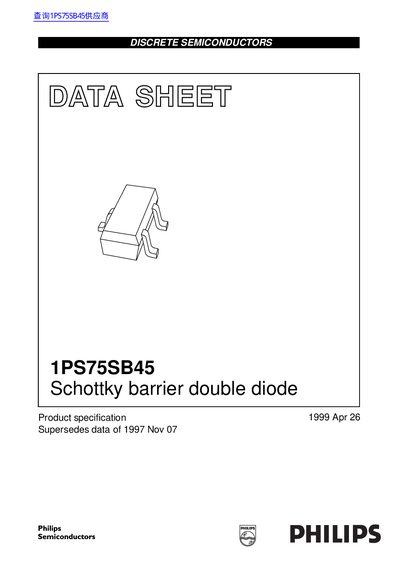

1PS75SB45 is a Schottky barrier double diode produced by Philips Semiconductors. It features low forward voltage, guard ring protection, ultra small plastic SMD package and low diode capacitance.
The Philips 1PS75SB45 is a Schottky barrier double diode encapsulated in an ultra-small plastic SOT416 (SC75) surface-mounted device package. It features a guard ring for protection and is designed for applications requiring ultra-high speed switching, such as voltage clamping, protection circuits, and blocking diodes. The device is marked with the code '45' and operates within a storage temperature range of -65 to +150 °C.
| Continuous reverse voltage | 40 V |
|---|---|
| Continuous forward current | 120 mA |
| Repetitive peak forward current | 120 mA |
| Non-repetitive peak forward current | 200 mA |
| Storage temperature | -65 +150 °C |
| Junction temperature | 150 °C |
| Continuous forward voltage (IF=1mA) | 380 mV |
| Continuous forward voltage (IF=10mA) | 500 mV |
| Continuous forward voltage (IF=40mA) | 1 V |
| Diode capacitance | 5 pF |
| Thermal resistance (junction to ambient) | 833 K/W |
The maximum continuous reverse voltage is 40 V.
The maximum continuous forward current is 120 mA.
The storage temperature ranges from -65 to +150 °C.
