BAT165 is a medium current Schottky rectifier diode for low-loss, fast-recovery, meter protection, bias isolation and clamping applications. It has a miniature plastic package for surface mounting (SMD).

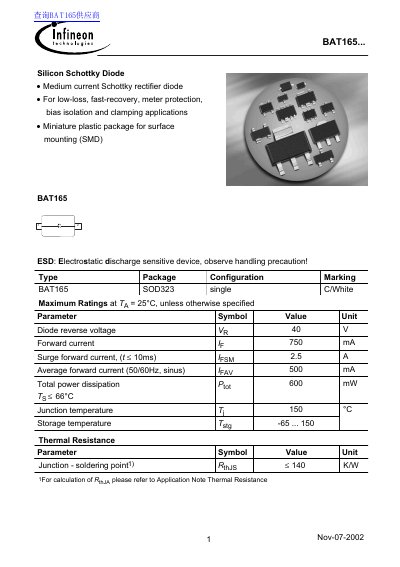

This document is a datasheet for the Infineon BAT165, a medium current Schottky diode designed for low-loss, fast-recovery applications such as meter protection, bias isolation, and clamping. The device is housed in a miniature plastic package suitable for surface mounting (SMD).
The datasheet provides comprehensive technical data including maximum ratings, electrical characteristics, and graphical representations of capacitance and current versus voltage and temperature. Key specifications include a reverse voltage of 40V and a forward current of 750mA.
| Diode reverse voltage | 40 V |
|---|---|
| Forward current | 750 mA |
| Surge forward current | 2.5 A |
| Average forward current | 500 mA |
| Total power dissipation | 600 mW |
| Junction temperature | 150 °C |
| Reverse current (typical) | 50 uA |
| Forward voltage (typical) | 0.4 V |
| Diode capacitance (typical) | 12 pF |
The maximum reverse voltage is 40 V.
The maximum forward current is 750 mA.
The typical forward voltage is 0.4 V at 10mA.
