BAT 66-05 is a Schottky diode from BAT company. Its maximum reverse voltage is 40 V, maximum forward current is 2 A, and maximum power dissipation is 1.2 W. BAT 66-05 is packaged in SOT-223 and can be used for low-loss, fast-recovery rectification, meter protection, bias isolation, and clamping.

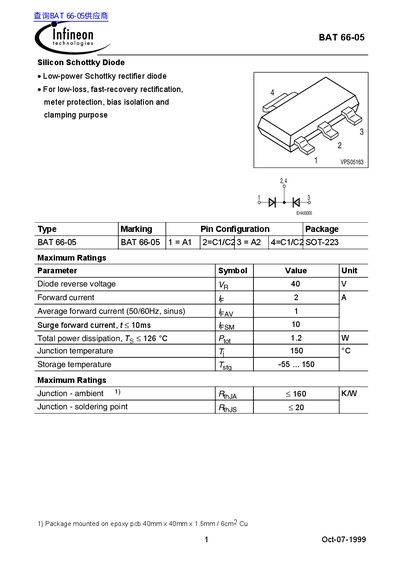

This document is a datasheet for the Infineon Technologies BAT 66-05, which is described as a low-power Schottky rectifier diode. It is designed for applications requiring low-loss, fast-recovery rectification, meter protection, bias isolation, and clamping purposes.
The datasheet provides maximum ratings including a reverse voltage of 40 V, a forward current of 2 A, and a total power dissipation of 1.2 W. It also lists electrical characteristics such as reverse current at various voltages and temperatures, forward voltage drops, and diode capacitance.
| Diode reverse voltage | 40 V |
|---|---|
| Forward current | 2 A |
| Average forward current (50/60Hz, sinus) | 1 A |
| Surge forward current, t< 10ms | 10 A |
| Total power dissipation, Ts < 126 °C | 1.2 W |
| Junction temperature | 150 °C |
| Storage temperature | -55 ... 150 °C |
| Reverse current at VR = 25V | 10 mA |
| Forward voltage at Ip=1mA | 0.35 V (typ) |
The maximum reverse voltage rating is 40 V.
The maximum forward current is 2 A.
The maximum total power dissipation is 1.2 W.
