BAT 62-03W is a low power Schottky diode with a working voltage of up to 40V and a maximum current of 40mA. The package type is SOD-323.

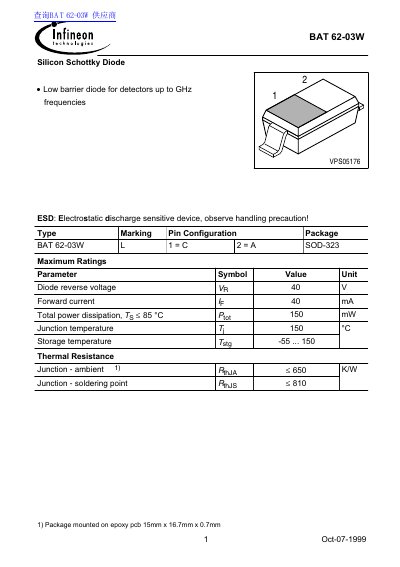

This document is a datasheet for the Infineon BAT 62-03W, a low barrier silicon Schottky diode designed for detector applications up to GHz frequencies. The device is noted as being sensitive to electrostatic discharge (ESD), requiring careful handling precautions during use.
The datasheet provides comprehensive technical data including maximum ratings such as a reverse voltage of 40V and a total power dissipation of 150mW. It also details DC characteristics like forward voltage and reverse current, as well as AC characteristics including diode capacitance, differential resistance, and series inductance at 25°C.
| Forward current | 40 mA |
|---|---|
| Storage temperature | -55 ... 150 °C |
The maximum forward current is 40 mA.
Yes, it is an electrostatic discharge sensitive device and handling precautions must be observed.
