BAT 62-02W is a low power diode for detectors up to GHz frequencies.

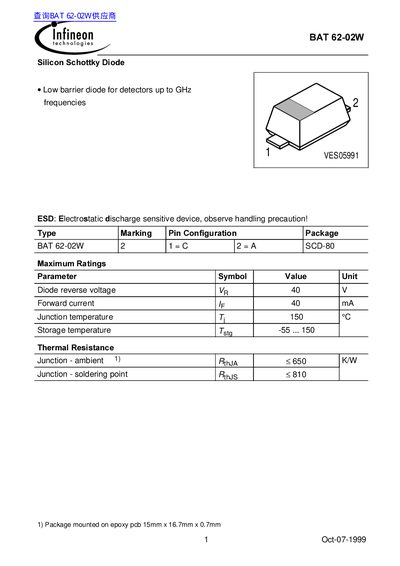

This document is a technical datasheet for the Infineon Technologies BAT 62-02W, which is described as a low barrier silicon Schottky diode designed for detector applications up to GHz frequencies. The device is housed in an SCD-80 package and features specific ESD handling precautions.
| Diode reverse voltage | 40 V |
|---|---|
| Forward current | 40 mA |
| Junction temperature | 150 °C |
| Reverse current (typical) | 10 pA |
| Forward voltage (typical) | 0.58 V |
The maximum reverse voltage rating is 40 V.
The typical forward voltage is 0.58 V when the forward current is 2 mA.
The device can be stored between a minimum of -55 °C and a maximum of 150 °C.
