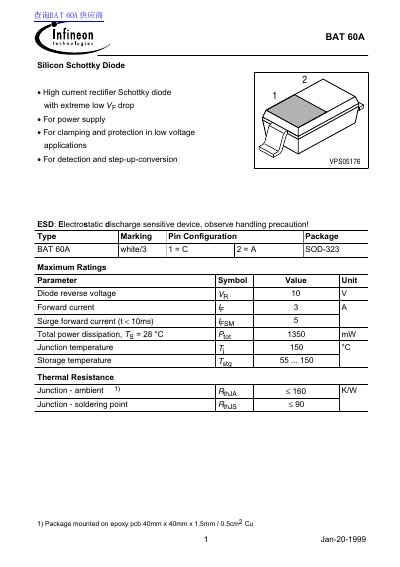

The BAT 60A is a silicon Schottky diode with an extremely low VF drop. It is suitable for power supplies, low voltage applications for clamping and protection, as well as detection and step-up conversion.
The document describes the Infineon BAT 60A, a silicon Schottky diode designed for high current rectification with an extremely low voltage drop. It is intended for use in power supplies, clamping, and protection in low voltage applications, as well as for detection and step-up conversion circuits. The device is available in a SOD-323 package with white marking.
| Diode reverse voltage | 10 V |
|---|---|
| Forward current | 3 A |
| Surge forward current | 5 A |
| Total power dissipation | 1350 mW |
| Junction temperature | 150 °C |
| Storage temperature | -55 ... 150 °C |
| Thermal Resistance Junction - ambient | < 160 K/W |
| Diode capacitance | 20 pF |
The maximum reverse voltage is 10 V.
The maximum forward current rating is 3 A.
