This document describes the applications and characteristics of the BAT 17W silicon Schottky diodes. It is suitable for mixer applications in the VHF / UHF range and high-speed switching applications.

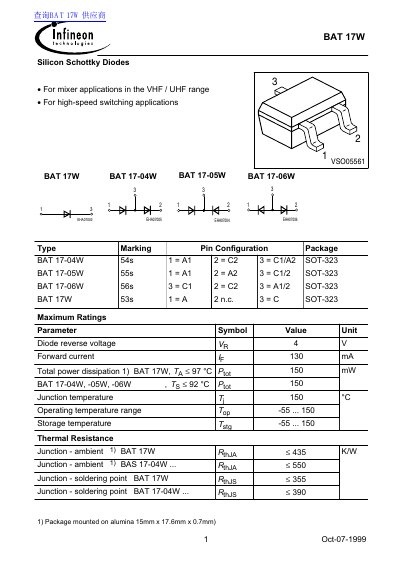

This document is a datasheet for the Infineon BAT 17W series of Silicon Schottky Diodes. The product is specifically designed for mixer applications in the VHF and UHF frequency ranges as well as for high-speed switching applications. The datasheet covers various models within the series, including BAT 17-04W, BAT 17-05W, and BAT 17-06W, all available in the SOT-323 package.
| Diode reverse voltage | 4 V |
|---|---|
| Forward current | 130 mA |
| Total power dissipation | 150 mW |
| Junction temperature | 150 °C |
| Operating temperature range | -55 ... 150 |
| Package type | SOT-323 |
| Breakdown voltage | 4 V |
| Diode capacitance | 0.4 ... 0.75 pF |
The diode is designed for mixer applications in the VHF / UHF range and for high-speed switching applications.
The maximum junction temperature is 150 °C.
The maximum forward voltage at 10mA is 600 mV.
