This datasheet is for BAT 17-07, which is a silicon Schottky diode from BAT company for mixer applications in the VHF / UHF range and high-speed switching applications. The maximum reverse voltage of this diode is 4 V, the maximum forward current is 130 mA, the maximum power dissipation is 150 mW, and the operating temperature range is -55 to 150 °C.

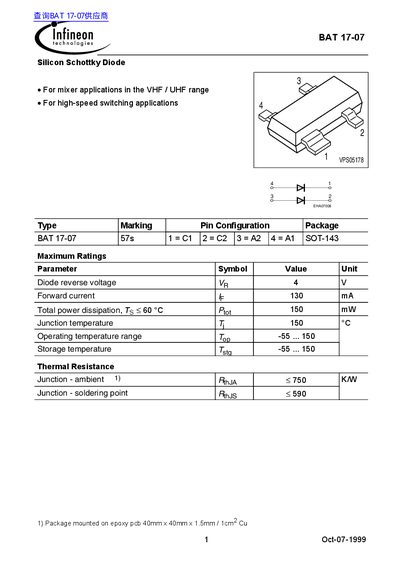

This document is a technical datasheet for the Infineon Technologies BAT 17-07, which is a Silicon Schottky Diode designed specifically for mixer applications in the VHF / UHF range as well as high-speed switching applications. The device features a SOT-143 package and includes specific marking codes (57s) and pin configurations.
The datasheet provides comprehensive electrical characteristics measured at 25 °C, including DC parameters such as breakdown voltage, reverse current, and forward voltage across various currents. It also lists AC characteristics like diode capacitance and differential forward resistance, along with maximum ratings for power dissipation and operating temperatures ranging from -55 to 150 °C.
| Diode reverse voltage (VR) | 4 V |
|---|---|
| Forward current (Ir) | 130 mA |
| Total power dissipation (Prot) | 150 mW |
| Junction temperature limit | 150 °C |
| Operating temperature range (Top) | -55 ... 150 |
| Breakdown voltage (ViBr) | 4 V |
| Reverse current at VR=3V, Ta=60°C | 1.25 mA |
| Forward voltage at Ip=1mA (typical) | 340 mV |
| Diode capacitance (Cr) | 1 pF |
It is designed for mixer applications in the VHF / UHF range and high-speed switching applications.
The device can operate up to 150 °C, with a storage temperature range of -55 to 150 °C.
The maximum rated forward current (Ir) for this diode is 130 mA.
