BAT 165 is a silicon Schottky diode produced by BAT company, with a rated reverse voltage of 40 V and a rated forward current of 750 mA.

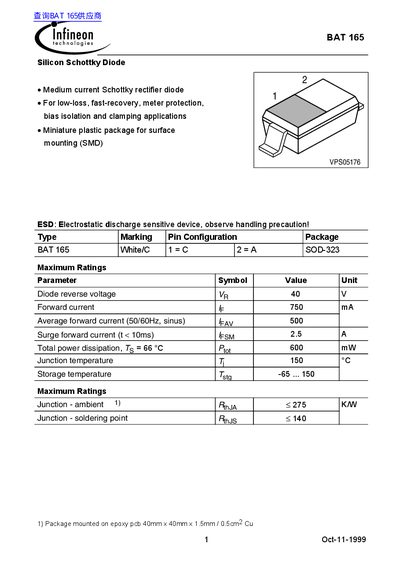

This document is a technical datasheet for the Infineon BAT 165, a silicon Schottky diode designed as a medium current rectifier. It is intended for low-loss, fast-recovery applications such as meter protection, bias isolation, and clamping.
The device features a miniature plastic SOD-323 package suitable for surface mounting. The datasheet provides detailed maximum ratings, electrical characteristics at 25°C, AC characteristics including capacitance, and graphical data on forward current versus temperature.
| Diode reverse voltage | 40 V |
|---|---|
| Forward current | 750 mA |
| Average forward current (60/60Hz, sinus) | 500 mA |
| Surge forward current (t < 10ms) | 2.5 A |
| Total power dissipation, Tc = 66 °C | 600 mW |
| Junction temperature | 150 °C |
| Storage temperature | -65 ... 150 °C |
The maximum reverse voltage rating is 40 V.
The maximum forward current is 750 mA.
The maximum total power dissipation is 600 mW.
