bfg16a is a npn 2ghz wideband transistor produced by philips. it has high power gain, good thermal stability and excellent reliability. the transistor is mainly used in wideband amplifiers, aerial amplifiers and vertical amplifiers in high speed oscilloscopes.

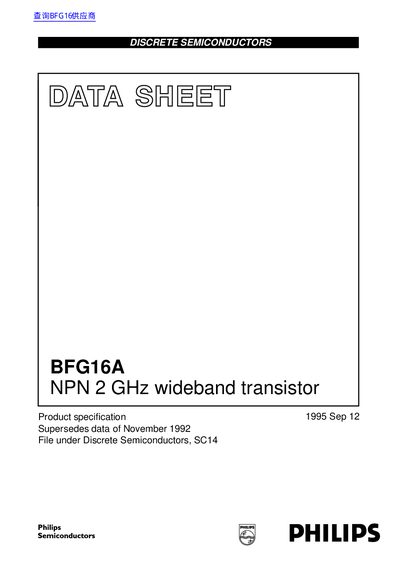

This datasheet describes the BFG16A, an NPN transistor designed for use in wideband amplifiers, aerial amplifiers, and vertical amplifiers in high-speed oscilloscopes. Key features include high power gain, good thermal stability, and gold metallization for reliability. The device is housed in a plastic SOT223 envelope.
| Collector-base voltage (VcBo) | 40 V |
|---|---|
| Collector-emitter voltage (VcEo) | 25 V |
| DC collector current (Ic) | 150 mA |
| Total power dissipation (Prot) | 1 W |
| Transition frequency (fT) | 1.5 GHz |
| Maximum unilateral power gain (Gum) | 10 dB |
| DC current gain (hFE) | 25 to 80 |
| Package type | SOT223 |
The storage temperature range is from -65 °C to +150 °C.
The maximum junction temperature (Tj) is 150 °C.
