PBSS5240Y is a low Vcesat PNP transistor produced by PHILIPS, which has the characteristics of low saturation voltage, high current capability, improved device reliability and enhanced performance. It can be applied to supply line switching circuits, battery management applications, DC/DC converter applications, strobe flash units and heavy-duty battery-powered equipment (motor and lamp drivers).

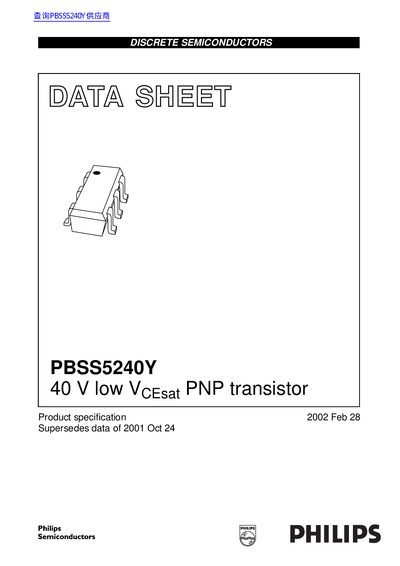

The document describes the Philips PBSS5240Y, a discrete semiconductor component designed as a high-current capability PNP transistor. It features a low collector-emitter saturation voltage and is intended for applications such as strobe flash units, supply line switching circuits, battery management, and DC/DC converters.
The device is available in an SOT363 (SC-88) plastic surface-mounted package with six leads. Key electrical characteristics include a maximum collector-emitter voltage of -40 V, a peak collector current of -3 A, and a transition frequency up to 100 MHz.
| Collector-emitter voltage (VCEO) | -40 V |
|---|---|
| Peak collector current (ICM) | -3 A |
| Collector current (DC) (IC) | -2 A |
| Equivalent on-resistance (Rcesat) | < 200 mΩ |
| Total power dissipation (PTOT) | 430 mW |
| Storage temperature (Tstg) | -65 to +150 °C |
