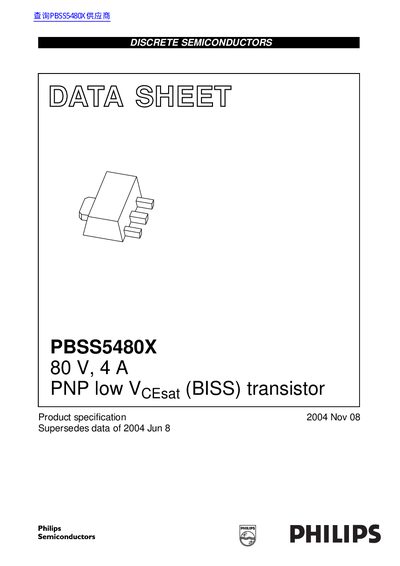

philips PBSS5480X 80 V 4 A PNP low VCEsat (BISS) transistor handbook

The PBSS5480X is a PNP low VCEsat (BISS) transistor from PHILIPS. Its features are high hFE and low VCEsat, high collector current IC: 4A, high efficiency and low heat generation. This transistor can be used for medium power peripheral drivers (e.g. fans and motors), strobe flash units for digital still cameras and mobile phones, inverter applications (e.g. TFT displays), power switch for LAN and ADSL systems, medium power DC-to-DC conversion and battery chargers.

Brand
Philips
File format
PDF
Published
03 July, 2012
Updated
30 September, 2023
MD5 checksum
F1BC1D761DEAE01ED59E6684A719F0FF
PDF
philips PBSS5480X 80 V 4 A PNP low VCEsat (BISS) transistor handbook PDF
Download PDF
