The PBSS5350Z is a low Vcesat PNP transistor that features high collector current capability, high collector current gain and higher efficiency. It is suitable for power management, DC/DC converters, supply line switching, battery chargers, linear voltage regulation and other applications.

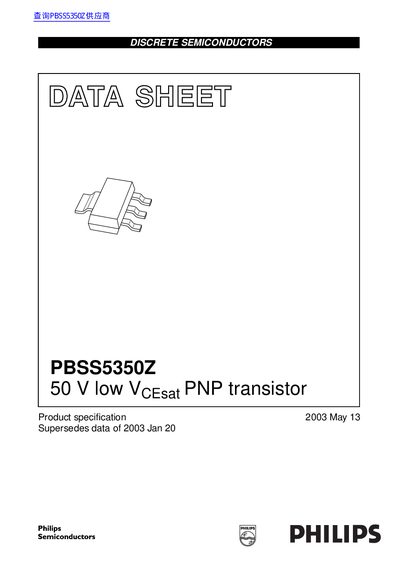

The document is a product specification data sheet for the PBSS5350Z, a discrete semiconductor component. It details the features of this PNP transistor, which offers low collector-emitter saturation voltage and high current capability. The device is designed in an SOT223 plastic package with four leads.
| Collector-Emitter Voltage (VCEO) | -50 V |
|---|---|
| Collector Current (DC) (IC) | -3 A |
| Peak Collector Current (ICM) | -5 A |
| Equivalent On-Resistance (RCEsat) | <150 mΩ |
| Package Type | SOT223 plastic package |
It is used in power management, DC/DC converters, supply line switching, battery chargers, and as a driver for LEDs or relays.
The total power dissipation is 1.35 W when mounted on a single-sided copper PCB with a 1 cm² collector pad.
