This document describes the features and characteristics of the PBSS5540X 40V, 5A PNP low VCEsat (BISS) transistor, as well as its applications in battery management, DC/DC converter, strobe flash units, and medium power driver.

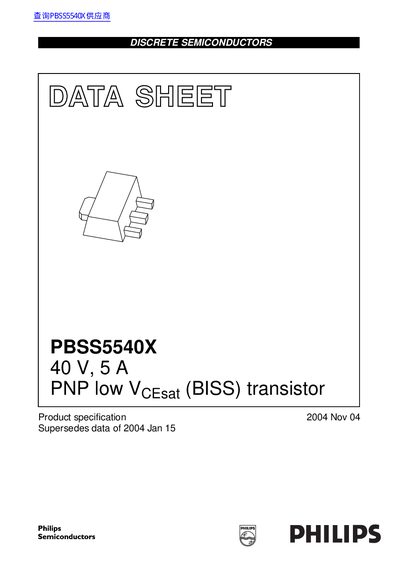

The document is a product specification datasheet for the Philips PBSS5540X, a PNP low Vcesat (BISS) transistor. It is housed in a medium power SOT89 (SC-62) package and is designed for applications such as supply line switching, battery management, DC/DC converters, and strobe flash units. The NPN complement is identified as the PBSS4540X.
| Collector-Emitter Voltage (VCEO) | -40 V |
|---|---|
| Collector Current (DC) | -4 A |
| Repetitive Peak Collector Current | -5 A |
| Equivalent On-Resistance | 75 mΩ |
| Package Type | SOT89 (SC-62) |
The NPN complement is the PBSS4540X.
It is used in supply line switching circuits, battery management applications, DC/DC converter applications, and strobe flash units.
