PBSS5350S is a 50V low Vcesat PNP transistor with high power dissipation (830mW), ultra low collector-emitter saturation voltage, 3A continuous current, high current switching, as well as improved device reliability due to reduced heat generation.

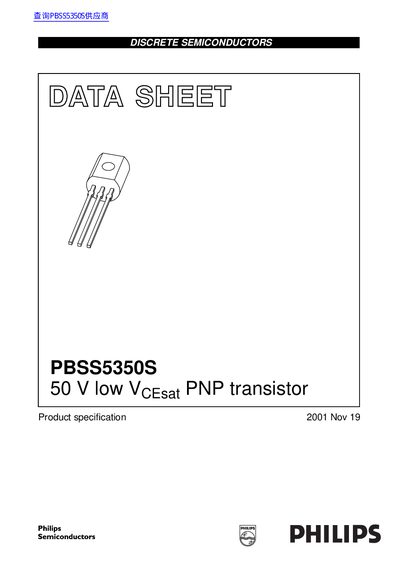

This document is a product specification datasheet for the Philips PBSS5350S, a PNP low VCEsat transistor packaged in SOT54 plastic. It is designed for high power dissipation (830 mW) and features an ultra-low collector-emitter saturation voltage, making it suitable for high current switching applications.
| Collector-emitter voltage | 50 V |
|---|---|
| Collector current (DC) | 3 A |
| Total power dissipation | 830 mW |
| Package type | SOT54 |
| Thermal resistance junction-to-ambient | 150 K/W |
The NPN complement is the PBSS43508.
It is used in medium power switching, linear regulators, DC/DC convertors, and battery management applications.
