PBSS5240V is a low Vcesat PNP transistor with high current capability and high efficiency, which can be used in power management and peripheral driver applications.

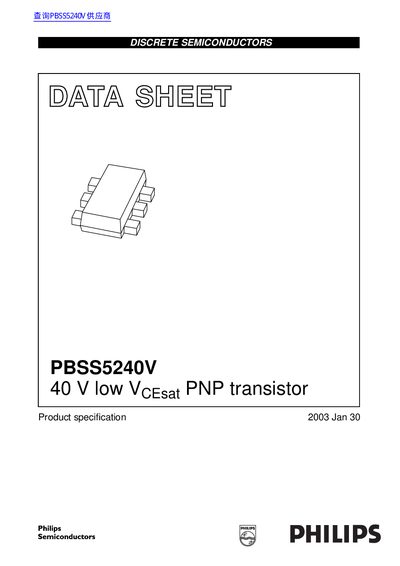

The Philips PBSS5240V is a PNP transistor designed to provide low collector-emitter saturation voltage and high current capability in a SOT666 plastic package. It is optimized for applications requiring high efficiency and reduced heat generation, such as DC-DC converters, battery chargers, and LCD backlighting. The device also serves as a driver for low supply voltage applications like lamps and LEDs, as well as for inductive loads including relays, buzzers, and motors.
| Collector-Emitter Voltage | -40 V |
|---|---|
| Peak Collector Current | -2 A |
| Equivalent On-Resistance | <250 mΩ |
| Package Type | SOT666 |
| Operating Ambient Temperature | -65 to +150 °C |
The NPN complement is the PBSS4240V.
The maximum collector-emitter voltage is -40 V.
