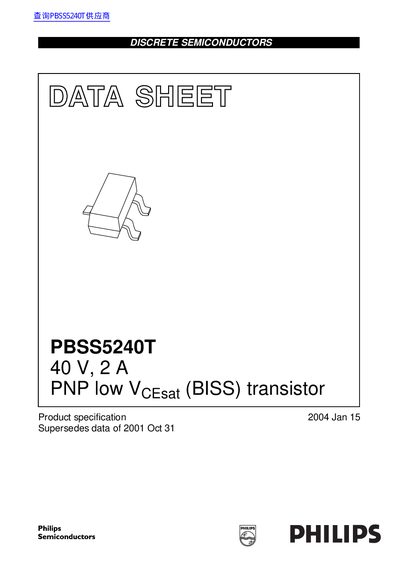

PBSS5240T is a 40 V, 2 A PNP low VCEsat (BISS) transistor from Philips Semiconductors. Product features are low collector-emitter saturation voltage, high current capability, reduced heat generation improved device reliability. It can be applied to supply line switching circuits, battery management applications, DC/DC converter applications, strobe flash units and heavy duty battery powered equipment (motor and lamp drivers).
The document describes the Philips PBSS5240T, a PNP low VCEsat (BISS) transistor designed for applications requiring high current capability and low saturation voltage. It is available in a plastic surface-mounted SOT23 package and serves as a replacement for standard SOT89/SOT223 packaged equivalents.
Key features include a maximum collector-emitter voltage of 40V and a maximum DC collector current of 2A. The device is suitable for supply line switching, battery management, DC/DC converters, and heavy-duty battery-powered equipment such as motor and lamp drivers.
| Collector-Emitter Voltage (VCEO) | -40 V |
|---|---|
| Package Type | SOT23 |
| Total Power Dissipation | 300 mW |
| Junction Temperature | 150 °C |
The maximum collector-emitter voltage is 40 V.
It uses a plastic surface-mounted SOT23 package with 3 leads.
