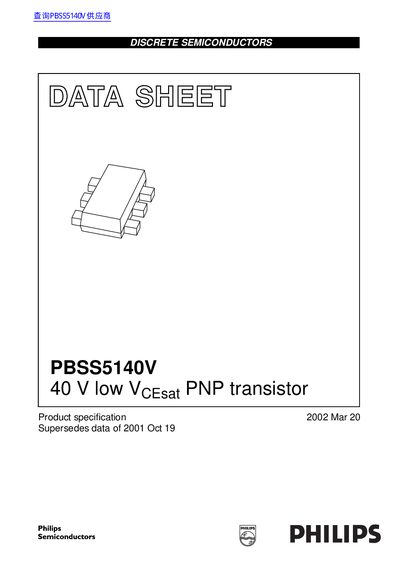

PBSS5140V is a low VCEsat PNP transistor from Philips. The maximum power dissipation is 300 mW, and the package size is 1.6 mm × 1.2 mm × 0.55 mm. This transistor is suitable for general purpose switching and muting, LCD back lighting, supply line switching circuits and other applications.
The Philips PBSS5140V is a PNP low VCEsat transistor designed for general-purpose switching and muting applications. It features a very small 1.6 mm x 1.2 mm x 0.55 mm ultra-thin SOT666 plastic package with improved thermal behavior due to flat leads and self-alignment during soldering due to straight leads. The device is suitable for applications such as LCD back lighting, supply line switching circuits, and battery-driven equipment including mobile phones, video cameras, and hand-held devices.
| Collector-emitter voltage (VCEO) | -40 V |
|---|---|
| Package type | SOT666 |
The maximum collector-emitter voltage is -40 V.
The maximum total power dissipation is 300 mW when the ambient temperature is below 25 °C.
The only recommended soldering method is reflow soldering.
