This document describes the features and characteristics of the PBSS5140U 40 V low VCEsat PNP transistor, including low collector-emitter saturation voltage, high current capability, reduced heat generation, and the PNP low VCEsat transistor in a SOT323 (SC-70) plastic package.

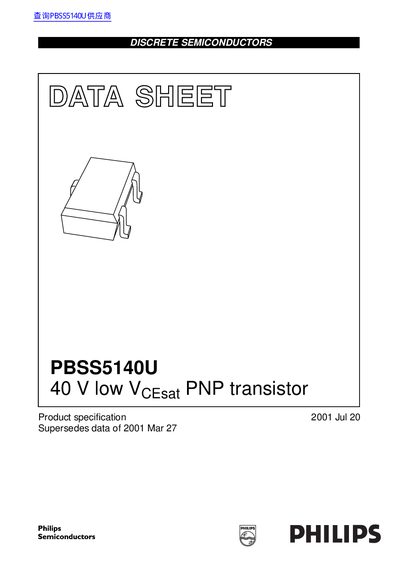

The document describes the Philips PBSS5140U, a discrete semiconductor component designed as a general-purpose switching and muting device. It features a low collector-emitter saturation voltage (VCEsat) and is housed in a plastic surface-mounted SOT323 (SC-70) package with three leads.
Key characteristics include a maximum collector-emitter voltage of -40 V, a peak collector current capability of 2 A, and an equivalent on-resistance less than 500 mΩ. The device is suitable for applications such as LCD backlighting, supply line switching circuits, and battery-driven equipment like mobile phones and video cameras.
| Collector-emitter voltage (VCEO) | -40 V |
|---|---|
| Equivalent on-resistance (RCEsat) | < 500 mΩ |
The maximum collector-emitter voltage is 40 V.
