This document describes the features and characteristics of the PESD5V2S18U ESD protection array, including 18-line uni-directional ESD protection, maximum peak reverse power, low clamping voltage, and low leakage current.

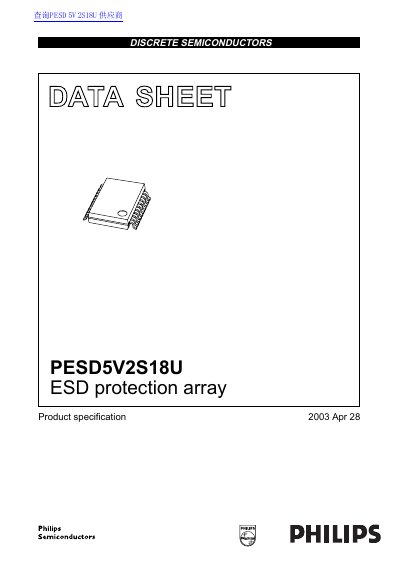

This document is a product specification datasheet for the Philips PESD5V2S18U, a monolithic ESD protection device. It is designed to protect up to 18 transmission or data lines from damage caused by electrostatic discharge (ESD) and surge pulses. The device features uni-directional protection with a low clamping voltage of 12 V maximum at 10 A and a low leakage current of 100 nA typical at 5.2 V.
| Leakage current (typ) | 100 nA |
|---|---|
| Operating temperature range | -65 to +150 °C |
The device is designed to protect up to 18 transmission or data lines.
The typical leakage current is 100 nA at a reverse voltage of 5.2 V.
The device can be stored between -65 °C and +150 °C.
