PBSS3515F is a 15V low VCEsat PNP transistor with low collector-emitter saturation voltage and high current capabilities. It is suitable for general purpose switching and muting, low frequency driver circuits, LCD backlighting, audio frequency general purpose amplifier applications, and battery driven equipment (mobile phones, video cameras and hand-held devices).

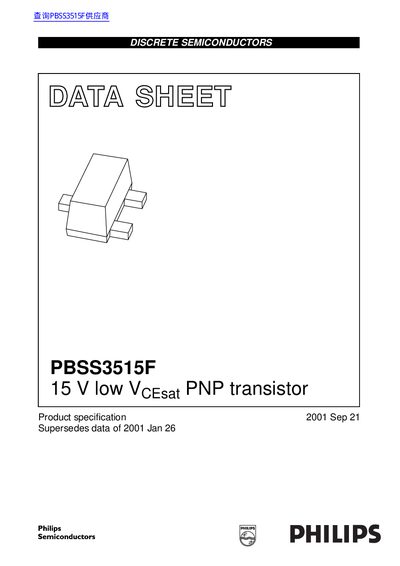

This document is a product specification datasheet for the PBSS3515F, a discrete semiconductor component. It describes a 15V, low collector-emitter saturation voltage (Vcesat) PNP transistor designed for general-purpose switching and muting applications.
The device features high current capabilities and improved thermal behavior due to its flat leads. It is available in an SC-89 (SOT490) plastic surface-mounted package with three pins: base, emitter, and collector.
| Collector-Emitter Voltage (VCEO) | -15 V |
|---|---|
| Collector Current (DC) (IC) | -500 mA |
| Equivalent On-Resistance (Ron) | < 500 mΩ |
| Package Type | SC-89 / SOT490 |
The NPN complement for the PBSS3515F is the PBSS2515F.
It is intended for general purpose switching, muting, low frequency driver circuits, LCD backlighting, and audio frequency amplifier applications.
