PBSS3540F is a 40V low Vcesat PNP transistor that features low collector-emitter saturation voltage, high current capability, improved thermal behavior due to flat leads and enhanced performance over SOT23 general purpose transistors.

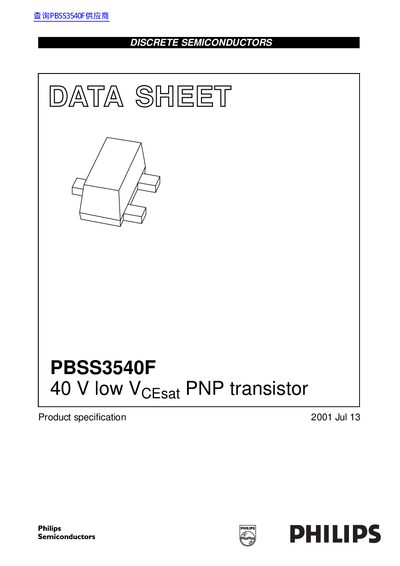

The document describes the Philips PBSS3540F, a PNP transistor designed for high current capability and improved thermal behavior due to flat leads. It is packaged in an SC-89 (SOT490) plastic package and is suitable for general-purpose switching, muting, low-frequency driver circuits, and battery-driven equipment such as mobile phones and video cameras. The NPN complement for this device is the PBSS2540F.
| Collector-emitter voltage | -40 V |
|---|---|
| Equivalent on-resistance | < 700 mΩ |
| Package type | SC-89 (SOT490) |
The NPN complement is the PBSS2540F.
It is used for general purpose switching, muting, low frequency driver circuits, and battery driven equipment.
The maximum collector-emitter voltage (Vceo) is -40 V.
