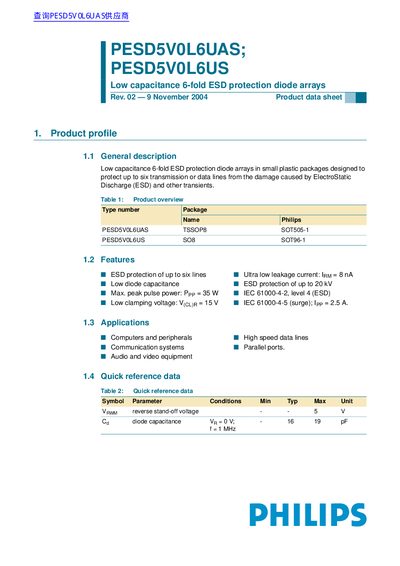

Philips PESD5V0L6UAS/PESD5V0L6US Low Capacitance 6-Fold ESD Protection Diode Arrays Datasheet

This is a product datasheet of PESD5V0L6UAS; PESD5V0L6US Low capacitance 6-fold ESD protection diode arrays. The datasheet mainly introduces the features, applications, technical parameters and other information of the product.

Brand: Philips
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 14
File format: PDF
File size: 84 KB
Published: 03 July, 2012
Updated: 30 September, 2023
MD5 checksum: F90C66B858FE783EE286F936D377C279
PDF: Philips PESD5V0L6UAS/PESD5V0L6US Low Capacitance 6-Fold ESD Protection Diode Arrays Datasheet PDF

About this manual

This datasheet describes the PESD5V0L6UAS and PESD5V0L6US, which are low capacitance 6-fold ElectroStatic Discharge (ESD) protection diode arrays available in small plastic packages. These devices are designed to protect up to six transmission or data lines from damage caused by ESD and other transients.

What's inside

Product profile
Pinning information
Ordering information
Marking
Limiting values
Characteristics
Application information

Specifications

Peak pulse power (per diode)	35 W
Reverse stand-off voltage (Vawm)	5 V

Frequently asked questions

What is the maximum number of lines protected by these diode arrays?

The devices are designed to protect up to six transmission or data lines.

What is the maximum peak pulse power rating for these diode arrays?

The device supports a maximum peak pulse power of 35 W.

How much electrostatic discharge protection does this component provide?

It offers ESD protection capability up to 20 kV for contact discharge.

What is the maximum junction temperature allowed for this product?

The maximum junction temperature is rated at 150 °C.
