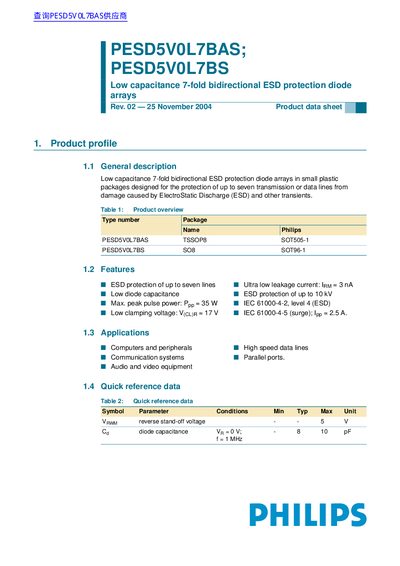

PHILIPS PESD5V0L7BAS; PESD5V0L7BS Low capacitance 7-fold bidirectional ESD protection diode arrays handbook

The document describes a low capacitance 7-fold bidirectional ESD protection diode arrays designed to protect up to seven transmission or data lines from damage caused by ElectroStatic Discharge (ESD) and other transients.

Brand: Philips
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 14
File format: PDF
File size: 85 KB
Published: 03 July, 2012
Updated: 29 September, 2023
MD5 checksum: 67CD413A2BEADEA2F0744B9C2D75A541
PDF: PHILIPS PESD5V0L7BAS; PESD5V0L7BS Low capacitance 7-fold bidirectional ESD protection diode arrays handbook PDF

About this manual

This document is a product data sheet for the Philips PESD5V0L7BAS and PESD5V0L7BS, which are low capacitance 7-fold bidirectional ESD protection diode arrays. These devices are designed to protect up to seven transmission or data lines from damage caused by ElectroStatic Discharge (ESD) and other transients. They are available in small plastic packages, specifically the TSSOP8 (SOT505-1) and SO8 (SOT96-1) formats.

What's inside

Product profile
Pinning information
Ordering information
Limiting values
Characteristics
Application information
Data sheet status

Specifications

ESD protection capability (contact discharge)	10 kV
Peak pulse power	35 W
Clamping voltage (Ipp = 2.5 A)	17 V
Reverse stand-off voltage	5 V
Diode capacitance	8 to 10 pF
Reverse leakage current	3 to 25 nA

Frequently asked questions

What is the maximum peak pulse power?

The maximum peak pulse power is 35 W for an 8/20 µs pulse.

How many lines can these diode arrays protect?

They are designed for the protection of up to seven transmission or data lines.

What are the available package types?

The devices are available in TSSOP8 (SOT505-1) and SO8 (SOT96-1) packages.
