This document describes a very low capacitance quadruple ESD protection diode array in an ultra small SOT665 plastic package, designed to protect up to four signal lines from damage caused by ESD and other transients. The features include: ESD protection for up to four lines, ultra low leakage current, very low diode capacitance, ESD protection up to 12 kV, low clamping voltage, etc.

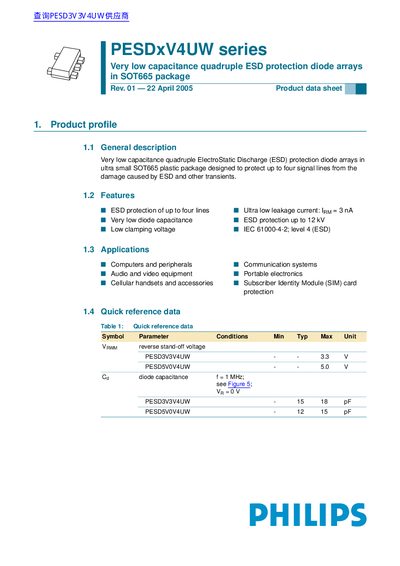

The Philips PESDxV4UW series consists of very low capacitance quadruple ElectroStatic Discharge (ESD) protection diode arrays designed in an ultra-small SOT665 plastic package. These devices are intended to protect up to four signal lines from damage caused by ESD and other transients. Key features include ultra-low leakage current, very low diode capacitance, and ESD protection up to 12 kV according to IEC 61000-4-2 standards.
| ESD protection level | up to 12 kV |
|---|---|
| Leakage current (PESD3V3V4UW) | 300 nA max |
| Package type | SOT665 |
The device provides ESD protection up to 12 kV according to IEC 61000-4-2 standards.
The PESDxV4UW series is designed to protect up to four signal lines.
