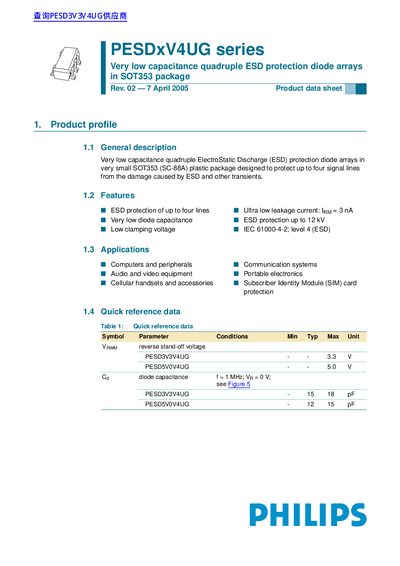

This data sheet provides detailed information on the PESDxV4UG series of quad ultra-low capacitance ESD protection diode arrays in SOT353 package, which are designed to protect up to four signal lines from damage caused by ESD and other transients.
The Philips PESDxV4UG series consists of very low capacitance quadruple ElectroStatic Discharge (ESD) protection diode arrays. These devices are housed in a very small SOT353 (SC-88A) plastic package and are designed to protect up to four signal lines from damage caused by ESD and other transients. Key features include ultra-low leakage current, very low diode capacitance, and ESD protection up to 12 kV according to IEC 61000-4-2 level 4 standards.
The series is suitable for a wide range of applications including computers and peripherals, communication systems, audio and video equipment, portable electronics, and cellular handsets. The datasheet provides comprehensive information on pinning, ordering, marking codes, limiting values, electrical characteristics, application guidelines for circuit board layout, package outlines, and packing information.
| Reverse stand-off voltage (PESD3V3V4UG) | 3.3 V |
|---|---|
| Diode capacitance (typical, f=1MHz, VR=0V) | 15 pF (PESD3V3V4UG), 12 pF (PESD5V0V4UG) |
| ESD protection voltage (IEC 61000-4-2) | 12 kV |
| Peak pulse power | 16 W |
| Peak pulse current | 1.5 A |
| Package type | SOT353 (SC-88A) |
The devices are designed to protect up to four signal lines.
The typical diode capacitance is 15 pF when measured at 1 MHz with 0V reverse voltage.
