This document is the PESD3V3L5UY, PESD5V0L5UY low capacitance 5-fold ESD protection diode arrays specification, which mainly introduces the product features and characteristics, including unidirectional ESD protection, bidirectional ESD protection, low diode capacitance, maximum peak pulse power, low clamping voltage, ultra low leakage current, ESD protection, application scenarios and so on.

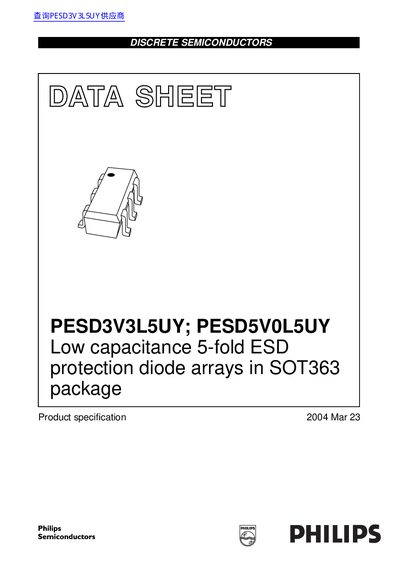

The document is a product specification sheet for the PESD3V3L5UY and PESD5V0L5UY low capacitance 5-fold ESD protection diode arrays housed in an SOT363 plastic package. These devices are designed to protect up to five transmission or data lines from damage caused by Electrostatic Discharge (ESD) and surge pulses, offering both uni-directional and bi-directional protection options.
| Reverse standoff voltage (PESD3V3L5UY) | 3.3 V |
|---|---|
| Diode capacitance (PESD3V3L5UY) | 22 pF |
| Number of protected lines | 5 |
| Maximum peak pulse power | 25 W |
| ESD protection capability (IEC 61000-4-2) | > 20 kV |
They are designed for cellular handsets, portable electronics, computers and peripherals, communications systems, and audio/video equipment.
The devices are available in a plastic surface mounted SOT363 package with 6 leads.
The device provides uni-directional ESD protection of up to five lines.
