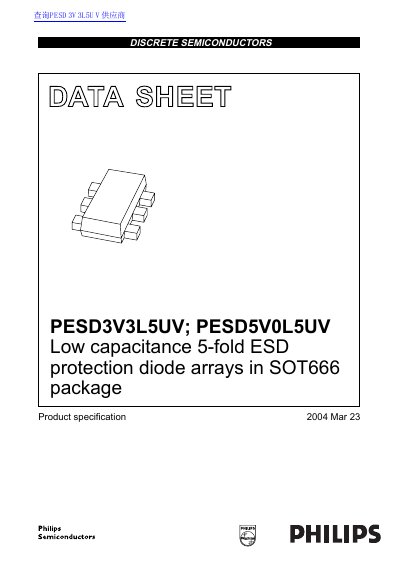

This document describes the features and characteristics of the PESD3V3L5UV and PESD5V0L5UV low capacitance 5-fold ESD protection diode arrays.
This datasheet describes the PESD3V3L5UV and PESD5V0L5UV, which are low capacitance 5-fold ESD protection diode arrays in the ultra-small SOT666 plastic package. These devices are designed to protect up to five transmission or data lines from damage caused by Electrostatic Discharge (ESD) and surge pulses. The PESD3V3L5UV provides uni-directional protection for up to five lines, while the PESD5V0L5UV offers bi-directional protection for up to four lines.
| Maximum peak pulse power (Ppp) | 25 W |
|---|---|
| ESD protection capability (IEC 61000-4-2) | > 20 kV |
| Package type | SOT666 |
The maximum peak pulse power is 25 W for an 8/20 us waveform.
The device can provide uni-directional ESD protection for up to five lines.
