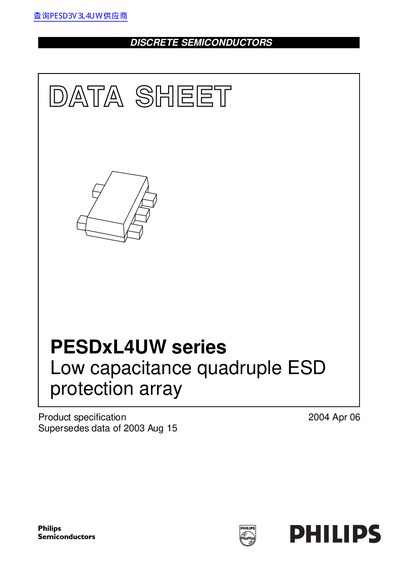

The PESDxL4UW series low capacitance quadruple ESD protection array is a very small SOT665 plastic surface mount package designed to protect up to four transmission or data lines from ElectroStatic Discharge (ESD) damage.
The document describes the PESDxL4UW series, which offers uni-directional ESD protection for four lines or bi-directional protection for three lines. The devices feature reverse standoff voltages of 3.3 V (PESD3V3L4UW) and 5 V (PESD5V0L4UW), ultra-low leakage current, and are housed in an SOT665 surface mount package.
| Reverse standoff voltage (PESD3V3L4UW) | 3.3 V |
|---|---|
| Reverse standoff voltage (PESD5V0L4UW) | 5 V |
| Peak pulse current (PESD3V3L4UW) | 3 A |
| ESD protection (IEC 61000-4-2) | >20 kV |
| Package type | SOT665 |
The device is designed for cellular handsets, portable electronics, computers and peripherals, communication systems, and audio/video equipment.
The device can be stored between -65 °C and +150 °C.
