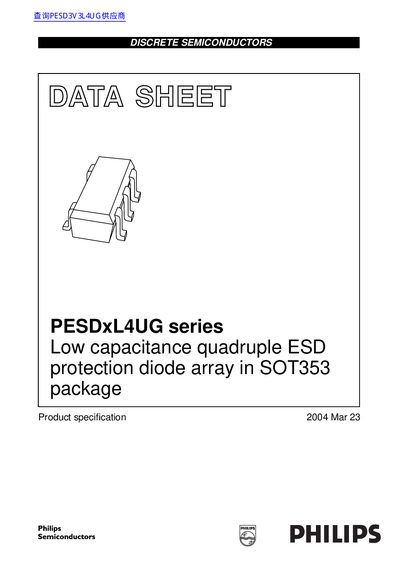

The PESDxL4UG series is a Philips Semiconductors low capacitance quadruple ESD protection diode array in SOT353 package. The product features uni-directional ESD protection, low diode capacitance, maximum peak pulse power, low clamping voltage, ultra low leakage current, ESD protection > 20 kV, etc. The product can be used in cellular handsets and accessories, portable electronics, computers and peripherals, communication systems, audio and video equipment, etc.
The Philips PESDxL4UG series consists of discrete semiconductor devices designed for unidirectional ESD protection of up to four lines. These components are suitable for applications in cellular handsets, portable electronics, computers, and communications systems.
| Number of protected lines | 4 |
|---|---|
| Maximum peak pulse power | 30 W |
| Low clamping voltage | 12 V |
| Ultra low leakage current | 5 nA |
| ESD protection capability | > 20 kV |
| Package type | SOT353 |
The maximum peak pulse power is 30 W at a pulse time of 8/20 microseconds.
The series is designed for the unidirectional ESD protection of up to four lines.
