The PESDxL2UM series of low capacitance double ESD protection diodes are ultra low capacitance and ultra low leakage current ESD protection diodes, using SOT883 small size package, with high ESD protection ability (>15 kV), can be widely used in portable electronic devices, computers and peripherals, communication systems, audio and video equipment.

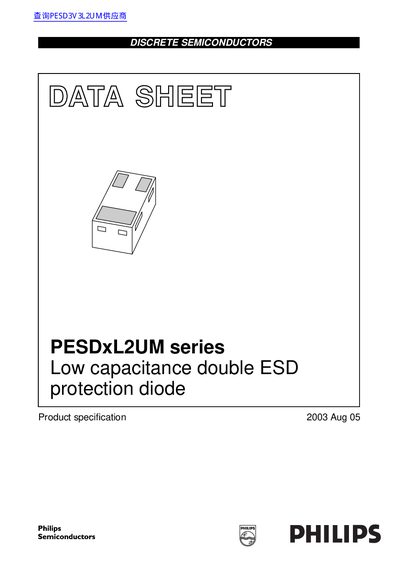

The document describes the PESDxL2UM series of discrete semiconductors designed as low capacitance, double ESD protection diodes. These devices offer uni-directional protection for two lines or bi-directional protection for one line, featuring a leadless ultra-small SOT883 surface mount package.
| Package Type | SOT883 leadless ultra small plastic package |
|---|---|
| Reverse Standoff Voltage (PESD5V0OL2UM) | 5 V |
| Peak Pulse Current (PESD3V3L2UM) | 3 A |
| ESD Protection (IEC 61000-4-2) | >15 kV (air) or 8 kV (contact) |
These devices are designed for cellular handsets, portable electronics, computers and peripherals, communication systems, and audio/video equipment.
Pin 1 and Pin 2 are cathodes, while Pin 3 is the common anode.
