PMEG2020EH and PMEG2020EJ are 20 V, 2A very low VF MEGA Schottky barrier rectifiers. They are suitable for low voltage rectification, high efficiency DC-to-DC conversion, switch mode power supply, reverse polarity protection and low power consumption applications.

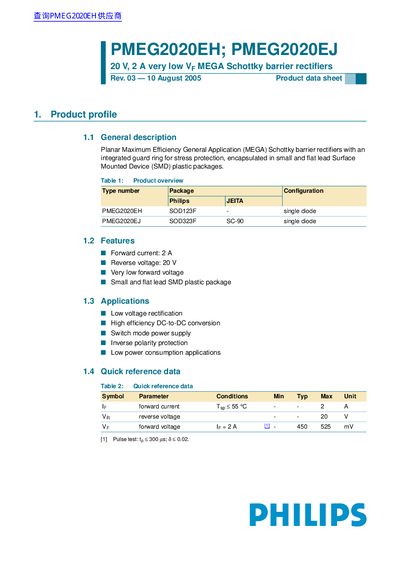

This document is a product data sheet for the Philips PMEG2020EH and PMEG2020EJ Schottky barrier rectifiers. These devices are designed for low voltage rectification, high efficiency DC-to-DC conversion, switch mode power supply, inverse polarity protection, and low power consumption applications. They feature an integrated guard ring for stress protection and are encapsulated in small and flat lead Surface Mounted Device (SMD) plastic packages.
| Forward current | 2 A |
|---|---|
| Reverse voltage | 20 V |
| Forward voltage (typical) | 525 mV |
| Junction temperature | 150 °C |
| Ambient temperature range | -65 +150 °C |
| Package Type 1 | SOD123F |
| Package Type 2 | SOD323F |
The devices have a maximum forward current of 2 A and a maximum reverse voltage of 20 V.
The typical forward voltage is between 450 mV and 525 mV at a forward current of 2 A.
