This document introduces a EMI suppressor product called PME264, which belongs to class X2 and is made of multi-layer metallized paper. It has a rated voltage of 660 VAC and a temperature range of -40 to +85°C. The product is suitable for high AC and DC voltage applications, such as commutator capacitor in converters, high voltage DC-capacitor in TV sets, and ignition circuits.

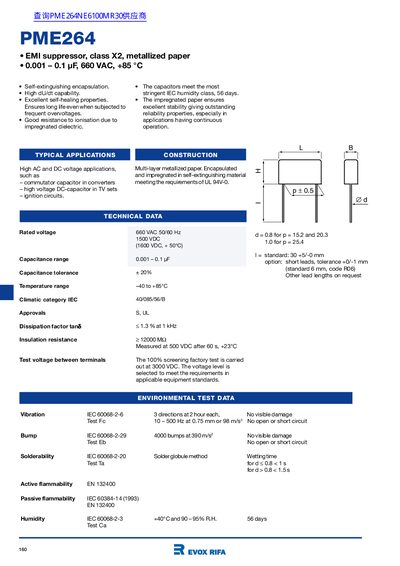

This document provides technical specifications and application information for the Evox Rifa PME264 series of multi-layer metallized paper capacitors. These components are designed as EMI suppressors (Class X2) with self-extinguishing encapsulation and excellent self-healing properties, suitable for high voltage DC applications in TV sets and ignition circuits.
| Rated Voltage AC | 660 VAC 50/60 Hz |
|---|---|
| Rated Voltage DC | 1500 VDC |
| Capacitance Range | 0.001 - 0.1 uF |
| Temperature Range | -40 to +85°C |
| Dissipation Factor | 21.3 % at 1 kHz |
| Insulation Resistance | 212000 MΩ |
| Test Voltage | 3000 VDC |
The capacitance tolerance is + 20%.
The climatic category is IEC 40/085/56/B.
The capacitors have approvals S and UL.
