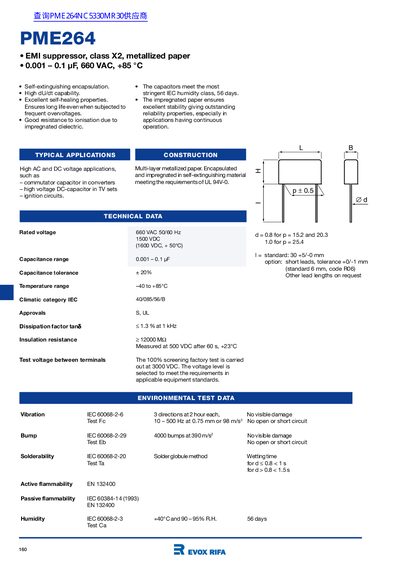

The document describes the features and characteristics of the PME264 EMI suppressor, including its ability to handle high AC and DC voltages, multi-layer metallized paper construction, encapsulation and impregnation in self-extinguishing material meeting UL 94V-0 requirements, and its applications in converters, TV sets, and ignition circuits.
This document provides technical data for the Evox Rifa PME264 series of multi-layer metallized paper capacitors. These components are designed as Class X2 EMI suppressors with a rated voltage of 660 VAC and a maximum DC voltage of 1500 VDC. They feature self-extinguishing encapsulation and excellent self-healing properties suitable for high voltage DC applications in TV sets and ignition circuits.
| Rated Voltage AC | 660 VAC 50/60 Hz |
|---|---|
| Rated Voltage DC | 1500 VDC |
| Capacitance Range | 0.001 - 0.1 UF |
| Capacitance Tolerance | + 20% |
| Temperature Range | -40 to +85°C |
| Climatic Category | IEC 40/085/56/B |
| Dissipation Factor | 21.3 % at 1 kHz |
| Insulation Resistance | 212000 MQ |
| Test Voltage | 3000 VDC |
| Max duU/dt | 2000 V/s |
The capacitance tolerance is + 20%.
The maximum DC voltage rating is 1500 VDC.
Standard lead lengths are 30 mm, with options for 5 or 6 mm.
