PME271Y is a capacitor produced by STMicroelectronics. The rated voltage is 250VAC, the rated capacitance is 0.001-0.15µF, and the working temperature range is -40/+100°C.

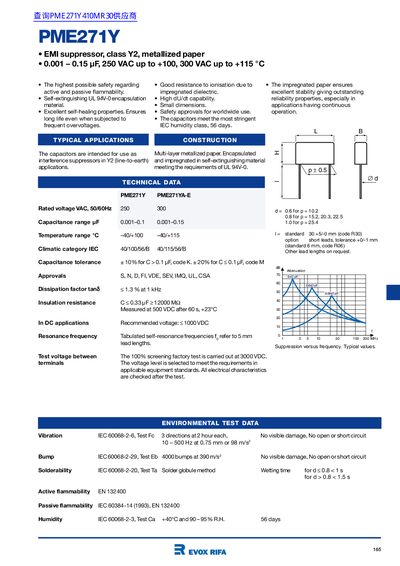

This document provides technical specifications and ordering information for the Evox Rifa PME271Y series of multilayer metallized paper capacitors. These components are designed to be used as interference suppressors in Y2 (line-to-earth) applications, meeting requirements such as UL 94V-0 for active flammability.
| Rated Voltage (250 VAC) | +100°C |
|---|---|
| Rated Voltage (300 VAC) | +115°C |
| Dissipation Factor | < 1.3 % at 1kHz |
They are intended for use as interference suppressors in Y2 (line-to-earth) applications.
They meet the requirements of UL 94V-0 for active and passive flammability.
The standard climatic category is IEC 40/100/56/B.
