PME264 is a high voltage AC and DC voltage application EMI suppressor from Jincheng Electric. It has a rated voltage of 660VAC 50/60Hz, a rated capacitance of 0.001-0.1μF, and a rated temperature range of -40 to +85 °C. It meets IEC and UL standards, has a self-extinguishing package, high dU/dt capability and good self-healing ability.

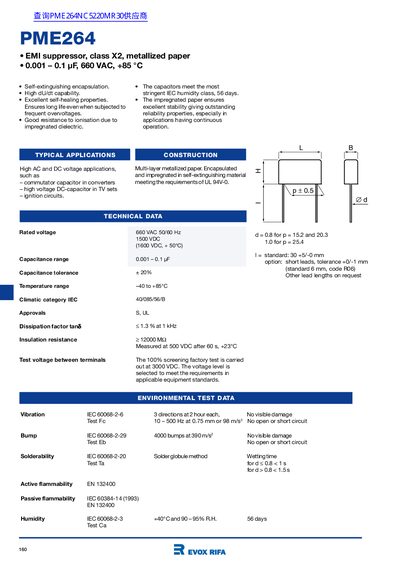

This document is a technical datasheet for the Evox Rifa PME264 series of multi-layer metallized paper capacitors. These components are designed as Class X2 EMI suppressors with ratings up to 660 VAC and 1500 VDC, featuring self-extinguishing encapsulation and high dU/dt capability.
| Rated Voltage AC | 660 VAC 50/60 Hz |
|---|---|
| Rated Voltage DC | 1500 VDC (1600 VDC, +50°C) |
| Capacitance Range | 0.001 - 0.1 µF |
| Temperature Range | -40 to +85°C |
| Dissipation Factor | < 2.13% at 1 kHz |
| Insulation Resistance | > 200 MΩ |
| Test Voltage | 3000 VDC |
The capacitors meet requirements for S and UL certifications.
The rated voltage is 660 VAC at 50/60 Hz or 1500 VDC.
The capacitance range is 0.001 to 0.1 microfarads.
The temperature range is from -40 to +85 degrees Celsius.
