PME264 is an EMI suppressor produced by Golden Dragon Electronics. The rated voltage is 660VAC, the capacitance range is 0.001-0.1μF, and the working temperature range is -40 to +85°C. The product has self-extinguishing encapsulation, high dU/dt capability, and excellent self-healing properties.

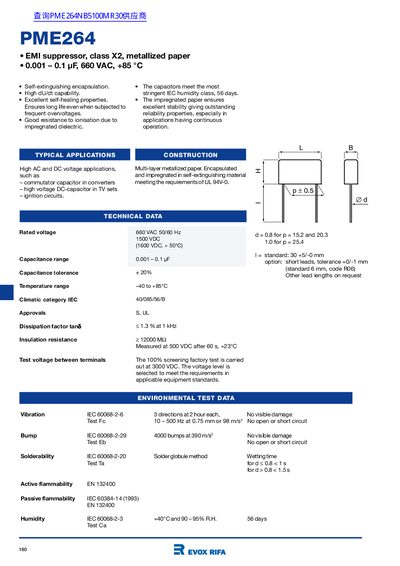

This document is a technical datasheet for the Evox Rifa PME264 series of multi-layer metallized paper capacitors. These components are designed as Class X2 EMI suppressors with self-extinguishing encapsulation and excellent self-healing properties.
The datasheet provides detailed electrical specifications, including rated voltages up to 1500 VDC, capacitance ranges from 0.001 to 0.1 µF, and temperature ratings of -40°C to +85°C. It also lists mechanical dimensions for various capacitances and lead lengths.
| Rated Voltage AC | 660 VAC 50/60 Hz |
|---|---|
| Rated Voltage DC | 1500 VDC (1600 VDC, + 50°C) |
| Capacitance Range | 0.001 - 0.1 µF |
| Temperature Range | -40 to +85°C |
| Climatic Category | IEC 40/085/56/B |
| Dissipation Factor | < 2.13 % at 1 kHz |
The standard lead length is 30 mm (+5/-0 mm).
The rated voltage is 660 VAC at 50/60 Hz or 1500 VDC.
The capacitance range is 0.001 to 0.1 microfarads.
The temperature range is from -40 to +85 degrees Celsius.
