The document describes a product called PME264, which is an EMI suppressor of X2 class made of multi-layer metallized paper. It has a rated voltage of 660 VAC and a temperature range of -40 to +85°C. The capacitance range is 0.001-0.1 µF. This product is suitable for high AC and DC voltage applications, such as commutator capacitor in converters, high voltage DC-capacitor in TV sets, ignition circuits, etc.

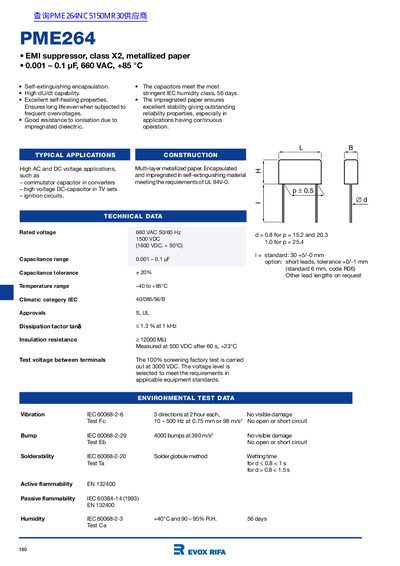

This document provides technical data for the Evox Rifa PME264 series of multi-layer metallized paper capacitors. These components are designed as EMI suppressors (Class X2) with a rated voltage of 660 VAC and feature self-extinguishing encapsulation to meet UL 94V-0 requirements.
| Rated Voltage AC | 660 VAC 50/60 Hz |
|---|---|
| Rated Voltage DC | 1500 VDC (1600 VDC, + 50°C) |
| Capacitance Range | 0.001 - 0.1 UF |
| Temperature Range | -40 to +85°C |
| Climatic Category | IEC 40/085/56/B |
| Dissipation Factor | 21.3 % at 1 kHz |
The capacitance tolerance is + 20%.
The device supports a rated voltage of 660 VAC at 50/60 Hz or 1500 VDC.
The capacitor operates within a capacitance range of 0.001 to 0.1 microfarads.
The capacitor has a high dU/dt capability of up to 2000 V/s for most capacitance values.
