PME264 is a metallized paper EMI suppressor produced by Goldlion Electronic with a capacitance range of 0.001-0.1μF, rated voltage of 660VAC and maximum temperature of +85°C. It has excellent dU/dt capability and self-healing ability.

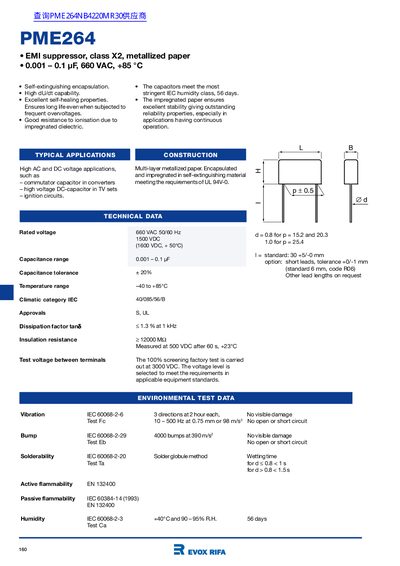

The Evox Rifa PME264 series consists of Class X2 metallized paper capacitors designed for high voltage AC and DC applications. These components feature a self-extinguishing encapsulation and impregnated dielectric to ensure long life and stability, even when subjected to frequent overvoltages or ionization. They are suitable for use in commutator capacitors for converters, high voltage DC capacitors in TV sets, and ignition circuits.
| Rated Voltage AC | 660 VAC 50/60 Hz |
|---|---|
| Rated Voltage DC | 1500 VDC |
| Capacitance Range | 0.001 - 0.1 µF |
| Temperature Range | -40 to +85°C |
| Climatic Category | IEC 40/085/56/B |
| Dissipation Factor | 21.3 % at 1 kHz |
| Insulation Resistance | 212000 MΩ |
| Test Voltage | 3000 VDC |
The rated voltage is 660 VAC at 50/60 Hz and 1500 VDC.
The capacitance range is 0.001 to 0.1 microfarads.
The temperature range is from -40 to +85 degrees Celsius.
